Push to Talk (PTT) over Cellular RM-1560 – Dual 4G LTE/Analog Radio

Long range wireless walkie-talkie communicator with 4G LTE capacity. The RM-1560 is equipped for DUAL mode with nationwide and worldwide cellular connectivity that has no range limit and as an analog walkie talkie radio. IP66 certified this field device is waterproof, shock and dust proof. A go-anywhere companion.

✅IP66 certified this field device is waterproof, shock and dust proof. A go-anywhere companion.

✅Have instant communication with all your field personnel and with no range limit.

✅With the REAL Mobile multi-carrier 4G LTE SIM this communicator goes Global!

✅Add the Administrative Dispatcher portal giving you access in REAL time with your field crew.

✅See where everyone is with your on-screen map, broadcast, single call and more.

Long range portable wireless walkie-talkie

TECHNICAL SPECIFICATIONS

Specification

Parameter

Modes

GSM 850/1900

LTE FDD:B2,B4,B5,B12,B17

3G Data

850/1900

Functions

Group/Private/All Call Function

Battery Life

3000 mAh Lithium Battery – 15 – 22 hours standby

Dimension

126mmx61mmx38mm

Weight

340g

Water Resistant

IP66

GPS

GPS Posotioning,1.57542GHz ;

Model No

RM-1560

Dimension

126mmx61mmx38mm

Weight

340g

Working Temperature

-20℃~+60℃

Working Voltage

DC 7.5v

Working Current

250Ma @ UTMS 2100/900

Peak Current

0.8A

Working Range

UMTS/HSDPA 850/1900/2100

GSM/GPRS/EDGE B3, B8

LTE FDD:B2,B4,B5,B12,B17

Maximum Output Power

WCDMA 900/2100MHz:Power Class 3(+24dBm +2.5Bm/-1.5dBm)

GSM/GPRS850/900MHz:Power Class(+33dBm +2.5Bm/-0.5dBm)

GSM/GPRS1800/1900MHz:Power Class(+30dBm +2.5Bm/-0.5dBm)

Receiving Sensitivity

WCDMA 900: ≤-108dBm

WCDMA 2100: ≤-109dBm

GSM 850/900/1800/1900: ≤-106dBm

GPS

GPS Posotioning,1.57542GHz

Batteru

3000 mAh

Sensitivity

Catch -144dBm,Track-159dBm

Data Speed Rate

GSM CS:UL 9.6kpbs/DL9.6kpbs

GPRS: Muiti-solt Class 10

EDGE: Muiti-solt Class 10

WCDMA CS:UL 64kpbs/DL 64kpbs

WCDMA PS:UL 384kpbs/DL 384kpbs

Protocol

HSDPA/WCDMA/EDGE/GPRS/GSM

Channel Capacity

128 (400-520MHZ)

Channel spacing

25kHz/12.5kHz

Operating voltage

DC 7.5v

frequency range

UHF

working mode

channel/frequency/channel + frequency

antenna impedance

50 ohms

operating temperature

-20c – +60c

fm mode

frequency stability

+- /-2.5ppm

reference sensitivity

> -121dBm

adjacent path sensitivity

>65dB

audio response

<=2dB & >= -10dB

rated audio power

1000mW

receive signal-to-noise ratio

>=45dB

audio distortion

<=5%

co-channel suppression

>= 8dB

PTT Equipment

Call today and let’s discuss your options!

Push to Talk (PTT) over Cellular RM-1560 – Dual 4G LTE/Analog Radio

Long range portable wireless walkie-talkie

TECHNICAL SPECIFICATIONS

PTT Equipment

PTT RM-1560

PTT RM-M-9900

PTT RM-F8+

Accessories

Single Charger

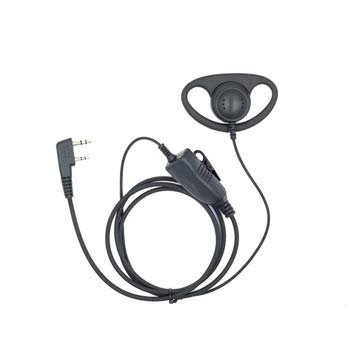

PTT Earphone
