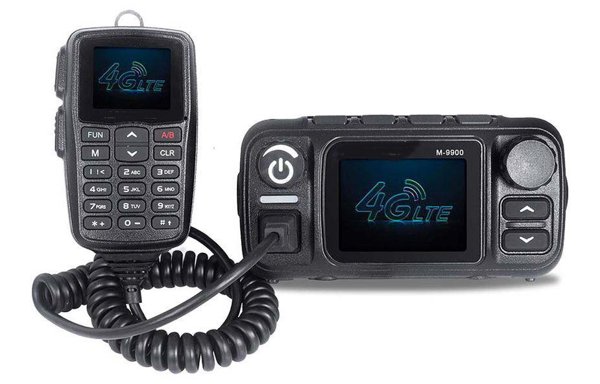

Push to Talk (PTT) over Cellular RM-M-9900 – 4G LTE/Analog Radio

Vehicle-mounted long-range wireless walkie-talkie communicator. Works with 4G LTE and UHF/VHF channels. The RM-M-9900 is equipped for DUAL mode with nationwide and worldwide cellular connectivity that has no range limit and is an analog walkie-talkie radio.

✅Have instant communication with all your field personnel and with no range limit.

✅With the REAL Mobile multi-carrier 4G LTE SIM this communicator goes Global!

✅Add the Administrative Dispatcher portal giving you access in REAL time with your field crew.

✅See where everyone is with your on-screen map, broadcast, single call and more.

Long range portable wireless walkie-talkie

TECHNICAL SPECIFICATIONS

Specification

Parameter

B1/B2/B3/B4/B5/B7/B8/B12/B20/B38/B39/B40/B41

3G Data

Band 1:2100M Band2:1900M Band5:850M Band 8:900M

Functions

Group/Private/All Call Function

Dimension

153*78*45mm

Weight

570g

GPS

GPS Posotioning,1.57542GHz ;

Model No

RM-M-9900

Dimension

153mm(L)*78mm(W)*45mm(H

Weight

570g

Working Temperature

-20~50℃

Working Voltage

12V/24V DC

Working Current

250Ma @ UTMS 2100/900

Maximum power

50W

Working Range LTE

B1/B2/B3/B4/B5/B7/B8/B12/B20/B38/B39/B40/B41

WCDMA / GSM

Band 1:2100M Band2:1900M Band5:850M Band 8:900M

GSM/GPRS:850/900/1800/1900MHz

Operating System

Linux

GPS

GPS Posotioning,1.57542GHz

GPS L1 Band:1.57542GHz

GLONASS Band:1597.5-1605.8Mhz

BeiDou:1559.05-1563.8MHZ

Catch-144dBm, Track-159dBm

GSM CS:UL 9.6kpbs/DL9.6kpbs

GNSS current:100mA(GSM/CDMA/UMTS/LTE)

Battery

n/a

Sensitivity

Gain: 2.5/3dB

Protocol

HSDPA/WCDMA/EDGE/GPRS/GSM

Channel Capacity

Tx/Rx:400-480mhz & 136-174mhz

Channel spacing

5/6.25/10/12.5/25/50/100KHz

Operating voltage

12V/24V DC

frequency range

UHF VHF

working mode

channel/frequency/channel + frequency

antenna impedance

50 ohms

operating temperature

-20c – +60c

frequency stability

+- /-2.5ppm

reference sensitivity

> -121dBm

adjacent path sensitivity

>65dB

audio response

<=2dB & >= -10dB

rated audio power

1000mW

receive signal-to-noise ratio

>=45dB

audio distortion

<=5%

co-channel suppression

>= 8dB

PTT Equipment
